Turbocharger
Perfect for all 3.0L-6.0L engine
Exhaust (Turbo Manifold) Flange: T4 4 Bolt Flange
Exhaust (Downpipe) Flange: V-Band Flange
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 600+ BHP
Turbo Height: 243cm
Turbo Width: 273cm
Compressor
Trim: 50
Inducer Diamter: 69mm
Exducer Diamter: 98 mm
A/R:0.66
Turbine
Trim:78
Inducer Diamter: 88mm
Exducer Diamter: 77.5 mm
A/R:1.05
Oil Feed & Return Line
* Oil Return Line: Length: 550mm || Inner Diameter: 21mm
* Oil Feed Line: Length: 1000mm || Inner Diameter: 14mm
Intercooler
Inlet / outlet size : 3″
Core Size: 600 x 300 x 76mm / 24″ x 12″ x 3″
Overall Size: 780 x 330 x 76mm / 31″ x 13″ x 3″
Inlet/Outlet: 76MM
Core design: Tube & Fin
Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: 2 Year warranty

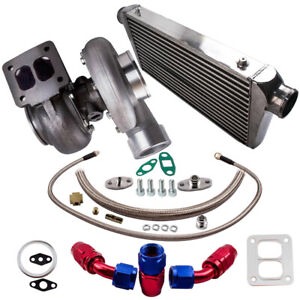

Accessories: You will get exactly as shown in the picture above
Note
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
* This is universal application turbo. so modification might be required for some vehicles
